Custom Snapmaker U1 Firmware

AFC-Lite Stub Implementation

EXPERIMENTAL: This feature is experimental and may be removed at any point without notice.

Overview

Thin compatibility layer simulating the ArmoredTurtle AFC-Klipper-Add-On to enable AFC UI panels in Fluidd/Mainsail. This is a status reporting stub only and does not implement actual AFC hardware control.

Why This Exists

To provide an ability to manage U1 extruders via Fluidd/Mainsail interface.

What It Provides

Status Integration:

• AFC-compatible status endpoints for Fluidd/Mainsail UI
• Maps U1’s 4 extruders to AFC lanes (E0-E3)
• Displays filament information from print_task_config

Macros:

• CHANGE_TOOL - wraps AUTO_FEEDING
• LANE_UNLOAD - wraps AUTO_FEEDING UNLOAD=1
• SET_COLOR - wraps SET_PRINT_FILAMENT_CONFIG
• SET_MATERIAL - wraps SET_PRINT_FILAMENT_CONFIG
• SET_MAP - wraps SET_PRINT_EXTRUDER_MAP

Limitations

Not Supported:

• Spoolman integration (planned for future release)
• Filament tracking and databases
• Runout lane configuration
• Mapping single extruder to multiple logical tools
• AFC hardware (hubs, buffers, physical devices)

Technical Constraints:

• None of the AFC.cfg configuration settings apply to AFC-Lite
• Changing (color, material, etc.) the RFID loaded filament via AFC is not supported and will result in error
• Changing weight is not supported, the weight is locked to 1000 g
• Changing runout lane is not supported
• All filament operations use U1’s native AUTO_FEEDING
• Status reporting only, no actual AFC control

Enabling/Disabling

Enable via Fluidd/Mainsail settings under Tweaks > AFC Stub, or manually:

ln -sf /usr/local/share/firmware-config/tweaks/klipper/afc.cfg \
       /oem/printer_data/config/extended/klipper/afc.cfg
/etc/init.d/S60klipper restart

To disable:

rm /oem/printer_data/config/extended/klipper/afc.cfg
/etc/init.d/S60klipper restart

Examples

Snapmaker Orca synchronization:

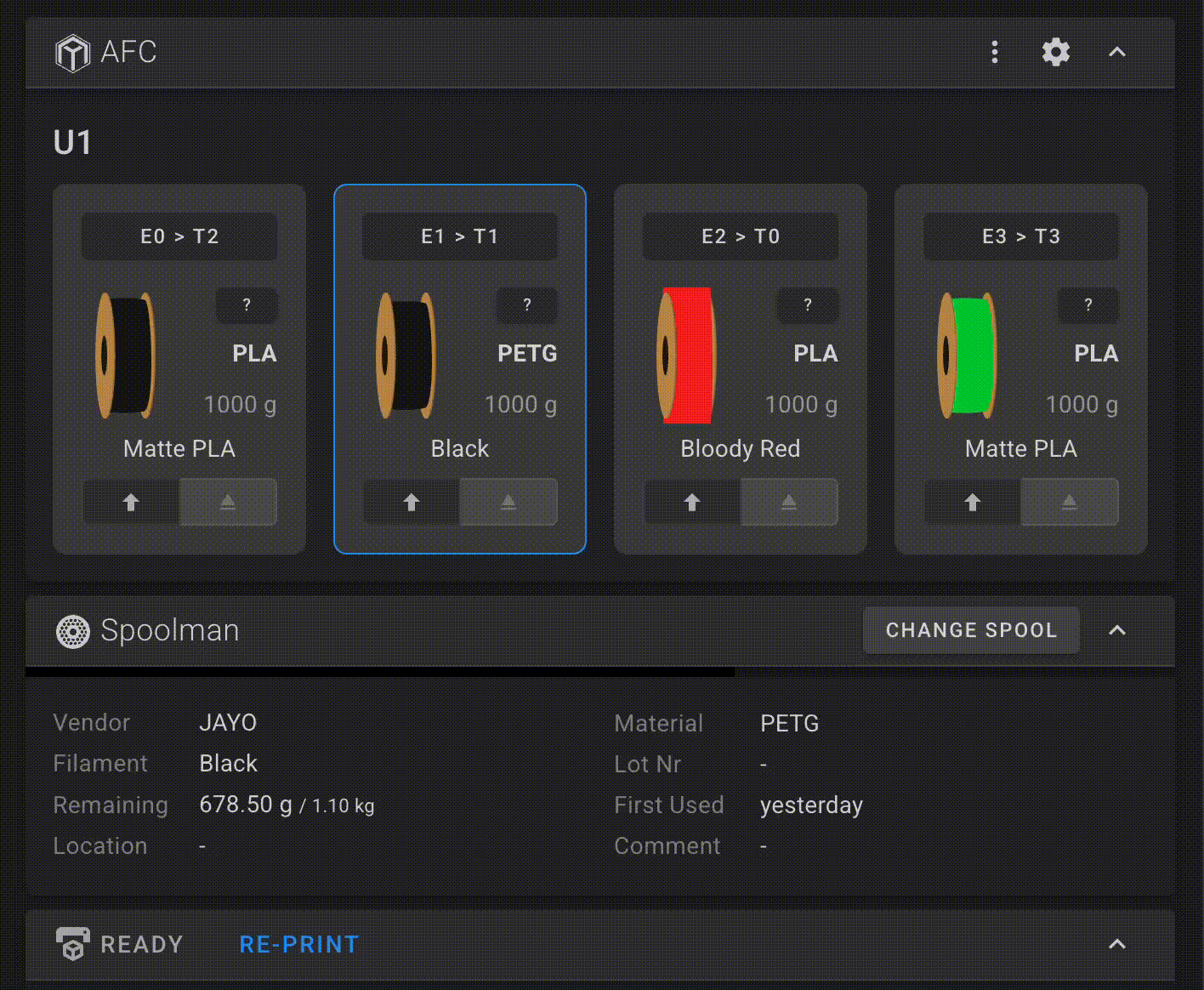

Tools re-mapping:
